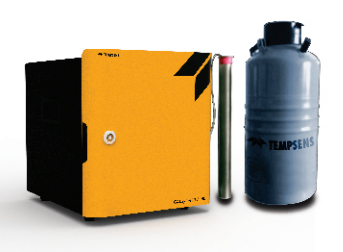

초저온 Portable Dry Block

초저온 Portable Dry Block

CALsys -196/-80 (-190 ~ -80°C)
  • 초저온 측정용 Dry Block
  • Temp range : -190 ~ -80°C
  • Stability: ±0.1°C at-190°C, ±0.1°C at -130°C, ±0.1°C at -80
  • Uniformity: ±0.2°C at-190°C, ±0.15°C at -130°C, ±0.17°C at -80
견적문의 Data sheet

제품 사양

Model CALSYS -196/-80
Temp Range -190 to -80°C
Stability ±0.1°C at-190°C
±0.1°C at -130°C
±0.1°C at -80
Uniformity ±0.2°C at-190°C
±0.15°C at -130°C
±0.17°C at -80
Temperature Resolution 1.0°C
Time to Reach Min. Temp 30 Mins
Controlling Sensor RTD-PT100
Method of Control Digital self tuned PID Controller
Insert Construction Dia 25 x 300 mm long (2 x 6 mm & 2 x 8 mm holes) of 300 mm insertion depth
Computer Interface RS - 232


제품 상세 설명

  • Large Immersion Depths
  • Wide Operating Range (-190 ~ -80°C)
  • High Stability
  • PC interfacing
  • Simple to use and cost effective
  • Separate control box
