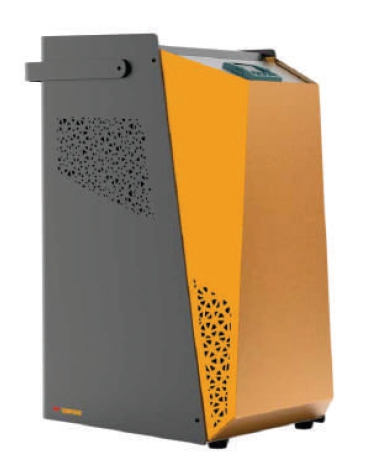

저온 Portable Dry Block / Autocal

저온 Portable Dry Block / Autocal

CALsys -15/110/Autocal (-15 ~ 110°C)
  • 저온 측정용 Dry Block
  • CALsys -15/110 or CALsys -15/110/Autocal 선택 가능
  • Temp range : -15 ~ 110°C
  • Stability: ±0.03°C at -15°C, ±0.05°C at 0°C, ±0.07°C at 110°C
  • Radial uniformity: ±0.05°C at -15°C, ±0.07°C at 0°C, ±0.09°C at 110°C
견적문의 Data sheet

제품 사양

Model CALsys -15/110 / Autocal
Temp Range -15 ~ 110°C
Stability ±0.03°C at -15°C
±0.05°C at 0°C
±0.07°C at 110°C
Radial uniformity ±0.05°C at -15°C
±0.07°C at 0°C
±0.09°C at 110°C
Immersion depth 120 mm
Insert OD dimensions 24 mm
Temperature Resolution 0.1°C
Heating time 10 Min
Cooling time 25 Min ( 110 °C to -15°C)
Method of control Digital self tuned PID Controller
Computer Interface RS - 232
Input (CALsys -15/110 Autocal) Four channels (one master and three test sensors).
high quality universal LEMO connector suitable both for T/C (J, K, N,T,R,S, B type) and Rtd
Software (CALsys -15/110 Autocal) The calibrator will be provided with software for data recording (Manual Mode ) and Test Certificate genration in AUTO MODE
Data logging (CALsys -15/110 Autocal) Data logging facility with logged data export to computer through LAN port ( optional USB)


제품 상세 설명

  • High Stability
  • Portability
  • PC Interfacing
  • Simple to use and cost effective
