중온 Portable Dry Block / Autocal

중온 Portable Dry Block / Autocal

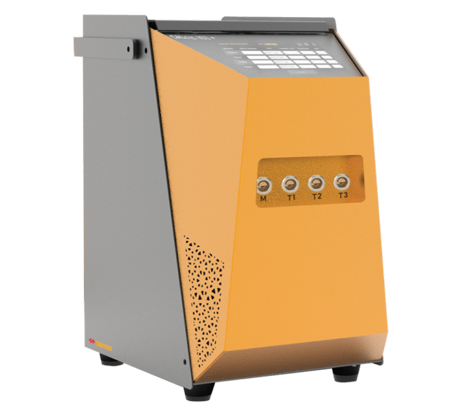

CALsys 650/Autocal (50 ~ 650°C)
  • 중온 측정용 Dry Block
  • CALsys CALsys 650 or CALsys 650/Autocal 선택 가능
  • Temp range : 50 ~ 650°C
  • Stability: ±0.01°C at 50°C, ±0.02°C at 350°C, ±0.03°C at 650°C
  • Uniformity: ±0.04°C at 50°C, ±0.07°C at 350°C, ±0.09°C at 650°C
견적문의 Data sheet

제품 사양

Model CALsys 650/Autocal
Temp Range 50⁰C ~ 650⁰C
Stability ±0.01°C at 50°C
±0.02°C at 350°C
±0.03°C at 650°C
Radial uniformity ±0.04°C at 50°C
±0.07°C at 350°C
±0.09°C at 650°C
Loading effect (with a 6.35 mm reference probe and three 6.35 mm probes) 0.04 °C
Insert OD dimensions 32mm
Immersion Depth 120mm
Cooling time 80 Min ( 650 °C ~ 100 °C)
Heating time 20 min
Resolution 0.1°C
PC Interface Ethernet port (Autocal 650) , USB Port (CALsys 650 )
Input(CALsys 650 Autocal) Four channels (one master and three test sensors).
high quality universal LEMO connector suitable both for T/C (J, K, N,T,R,S, B type) and Rtd
Software(CALsys 650 Autocal) The calibrator will be provided with software for data recording (Manual Mode ) and Test Certificate genration in AUTO MODE
Data Logging(CALsys 650 Autocal) Data logging facility with logged data export to computer through LAN port ( optional USB)


제품 상세 설명

  • Large Immersion Depths
  • Wide Operating Range (50°C to 650°C)
  • High Stability
  • PC interfacing
  • Simple to use and cost effective
