고온 Portable Dry Block / Autocal

고온 Portable Dry Block / Autocal

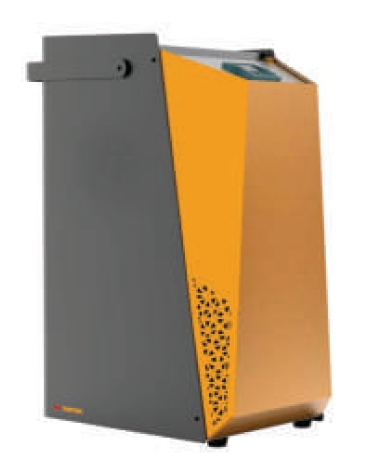

CALsys 1200/Autocal (250 ~ 1200°C)
  • 고온 측정용 Dry Block
  • CALsys 1200 or CALsys 1200/Autocal 선택 가능
  • Temp range : 250 ~ 1200°C
  • Stability: ±0.1°C at 250°C, ±0.3°C at 700°C, ±0.5°C at 1200°C
  • Uniformity: ±0.20°C at 250°C, ±0.24°C at 700°C, ±0.36°C at 1200°C
견적문의 Data sheet

제품 사양

Model CALsys 1200/Autocal
Temp Range 250 °C ~ 1200 °C
Stability ±0.1°C at 250°C
±0.2°C at 700°C
±0.3°C at 1200°C
Radial Uniformity ±0.20°C at 250°C
±0.24°C at 700°C
±0.36°C at 1200°C
Immersion depth 160mm
Insert OD Dimensions 37mm
Method of Control Self Tunned PID Controller
Heating time 60 min
Cooling time 150 min(1200⁰C ~ 250⁰C )
Resolution 0.1⁰C up to 999⁰C
Computer interface RS- 232
Input (CALsys 1200 Autocal) Four Channels (One master and three test sensors), high-quality LEMO connector suitable for both T/C (J, K, N, T, R, S, B type) and Rtd.
Software (CALsys 1200 Autocal) The calibrator should be provided with software for data recording (Manual Mode) and Test Certificate generation in Auto Mode
Data logging (CALsys 1200 Autocal) Data logging facility with logged data export to computer through LAN port (optional USB)


제품 상세 설명

  • Easy-to-read color 7 Inch LCD display with perfect overview of the actual status
  • Intuitive, fast and user-friendly navigation
  • 4 Channel Calibration (4 No's for Thermocouples or 4 No's for RTD's)
  • Includes Easy to use Connectors
  • Internal CJC compensation
