저온 Portable Dry Block / Autocal

저온 Portable Dry Block / Autocal

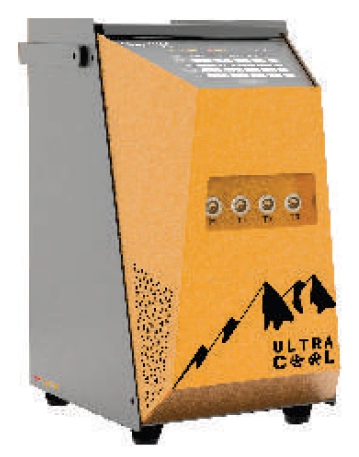

Calsys -100/40 / Autocal (-100°C ~ 40°C)
  • 저온 측정용 Dry Block
  • Calsys -100/40 or Calsys -100/40 / Autocal 선택 가능
  • Temp range : -100°C ~ 40°C
  • Stability (30 Min) : ±0.04 °C or Better
  • Radial Uniformity : ±0.05°C or better
견적문의 Data sheet

제품 사양

Model Calsys -100/40 / Autocal
Temp Range -100°C ~ 40°C
Stability (30 Min) ±0.04 °C or Better
Radial Uniformity ±0.05°C or better
Immersion Depth** 150 mm
Method of Control Self tunned PID controller
Cooling Time 70 Min ( Ambient 25°C to -100°C)
Resolution 0.1 °C (0.01 Optional)
Computer Interface RS - 232
Input (CALsys -100/40 Autocal) Four Channels (One master and three test sensors), high-quality LEMO connector suitable for both T/C (J, K, N, T, R, S, B type) and Rtd.
Software (CALsys -100/40 Autocal) The calibrator should be provided with software for data recording (Manual Mode) and Test Certificate generation in Auto Mode
Data logging (CALsys -100/40 Autocal) Data logging facility with logged data export to computer through LAN port (optional USB)


제품 상세 설명

  • Wide Operating Range (-100°C to 40°C)
  • Lightweight, portable
  • Cooling Technology
  • PC interfacing
  • Accredited calibration
