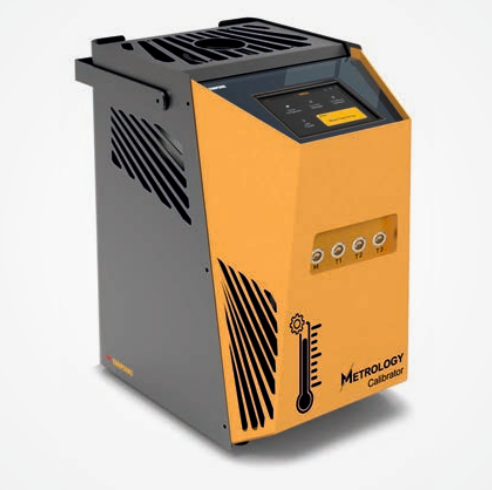

Model | CALsys 650 M |
---|---|
Temp Range | 50°C ~ 650°C |
Stability | ±0.01°C at 50°C ±0.02°C at 350°C ±0.05°C at 650°C |
Axial Uniformity (40mm) | ±0.09°C at 100°C ±0.22°C at 400°C ±0.35°C at 650°C |
Axial Uniformity (60mm) | ±0.12°C at 50°C ±0.30°C at 350°C ±0.60°C at 650°C |
Radial Uniformity | ±0.03°C at 50°C ±0.05°C at 350°C ±0.09°C at 650°C |
Display Acuuracy | ±0.05°C |
Loading effect (with a 6.35 mm reference probe and three 6.35 mm probes) | ±0.05°C |
Hysteresis | ±0.07°C |
Insert OD dimensions | 38 mm |
Immersion depth | 160 mm |
Cooling time | 70 Min (650°C at 100°C) |
Healing time | 20 Min |
Stability time | 15 Min |
Set Point Resolution | 0.1°C |
PC Interface | Ethernet part |
RTD Input Channel Accuracy | ±0.05°C ±0.005% RDG |
TC Input Channel Accuracy | E.J.K.N.T: ±0.3°C , R,S,B: ±0.5°C |
CJC Accuracy | ±0.05°C (15°C to 30°C) |
Software | The calibrator will be provided with software for data recording (Manual Mode) and Test Certificate generation in Auto Mode |
Data Logging | Data Logging facility with logged data export to computer through LAN port (optional USB) |
