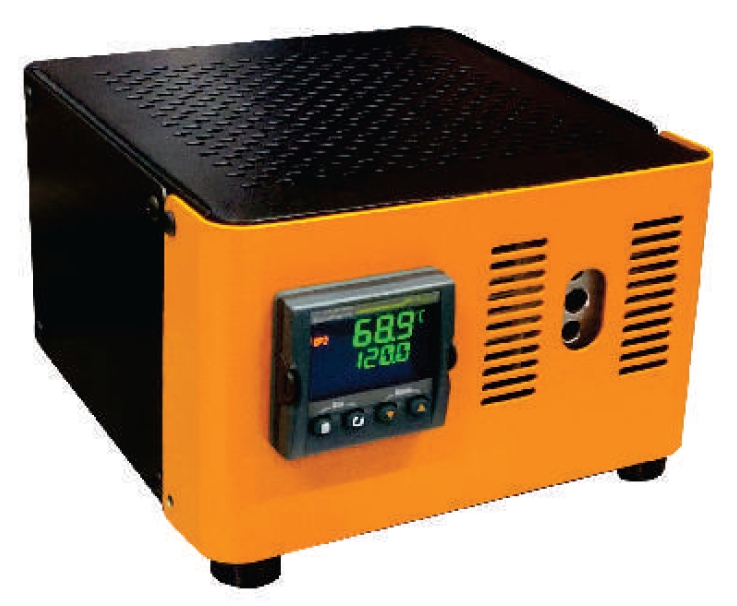

저온용 Portable Dry Block

저온용 Portable Dry Block

CAL FAST 120 (-10 ~ 120°C)
  • 저온용 Portable Dry Block
  • Temp range : -10 ~ 120°C
  • Instrument Weight : 2kg (without packing)
  • Power Requirement : 230 VAC, 500 W
  • Computer Interface: RS - 232 (Optional)
  • Time to Reach Max. Temperature: 10 Mins
  • Time to Reach Mini Temp : 15 Mins
  • Lightweight & portable
견적문의 Data sheet

제품 사양

Model CAL FAST 120
Temp Range -10 ~ 120°C
Stability (15 min) ±0.05°C
Radial Uniformity ±0.2°C
Time to Reach Max. Temp 10 Mins
Time to Reach Mini Temp 15 Mins
Controlling Sensor RTD (Pt 100)
Method of Control Digital self tuned PID Controller
Insert Construction Fixed insert with 2 holes of 6.5 x100 mm and one hole 8.5x100mm
Computer Interface RS - 232 (Optional)


제품 상세 설명

  • Lightweight & portable.
  • Accuracy and performance.
  • Accredited calibration.
