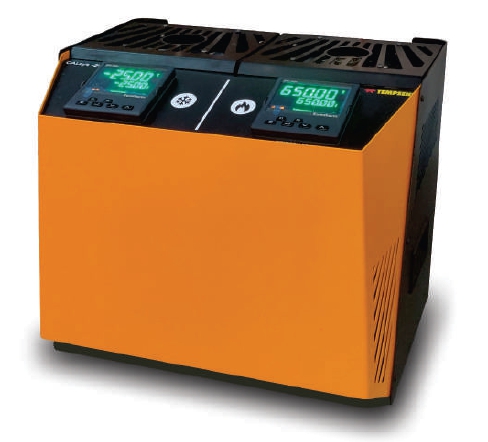

Dual Calsys -25/650 (-25°C ~ 650°C)

Dual Dry Block Calibrator
Temp range : -25°C ~ 650°C
Stability: ±0.02°C (Low-Temperature Block), ±0.03°C Upto 100°C (High-Temperature Block), ±0.05°C above 100°C
Resolution: 0.01°C
Weight: 20Kg

Model	Dual Calsys -25/650
Temp Range	Low-Temperature Block : 25 °C to 140 °C High-Temperature Block : Ambient to 650 °C
Stability	Low-Temperature Block : ±0.02°C High-Temperature Block : ±0.03°C Upto 100°C, ±0.05°C above 100°C
Immersion depth	160 mm
Insert OD dimensions	6 holes having a Diameter of 4.5 to 9.5 mm
Method of Control	Self tunned PID controller
Heating time	Low-Temperature Block : 30 Min High-Temperature Block : 30 Min
Cooling time	Low-Temperature Block : 15 Min High-Temperature Block : 90 Min
Resolution	0.01°C
