Liquid Bath Temperature calibrator

Liquid Bath Temperature calibrator

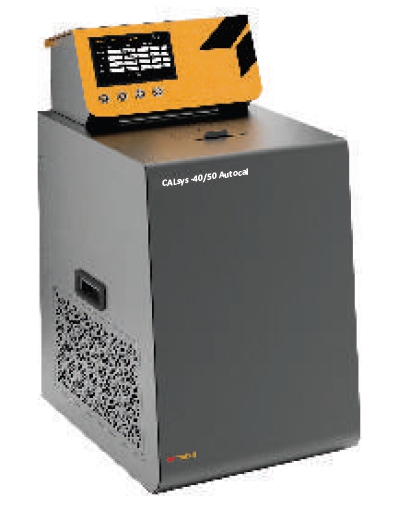

CALsys -40/50 / Autocal (-40 ~ 50°C)
  • Model : CALsys -40/50 / Autocal
  • CALsys -40/50 or CALsys -40/50 / Autocal 선택 가능
  • Temp range : -40 to 50°C
  • Stability: ±0.04 at -40°C, ±0.07 at 0°C, ±0.05 at 50°C
  • Uniformity: ±0.05 at -40°C, ±0.09 at 0°C, ±0.07 at 50°C
견적문의 Data sheet

제품 사양

Model CALsys -40/50 / Autocal
Temp range -40 to 50°C
Stability ±0.04 at -40°C
±0.07 at 0°C
±0.05 at 50°C
Uniformity ±0.05 at -40°C
±0.09 at 0°C
±0.07 at 50°C
Temperature Resolution 0.1°C
Cooling time 60 Min ( room temperature to -40°C )
Medium Methanol
Volume 6 Ltr
Access Opening 105 x 105 mm
Immersion depth 150 mm
Method of control Digital Self Tuned PID Controller
Computer Interface RS - 232
Weight 65 Kg(without packing)
Input (CALsys -40/50 Autocal) Four channels (one master and three test sensors).
high quality universal LEMO connector suitable both for T/C (J, K, N, T, R, S, B type) and Rtd
Software (CALsys -40/50 Autocal) The calibrator will be provided with software for data recording (Manual Mode ) and Test Certificate genration in AUTO MODE
Data logging (CALsys -40/50 Autocal) Data logging facility with logged data export to the computer through LAN port ( optional USB)


제품 상세 설명

  • Large Immersion Depths
  • High Accuracy
  • High Stability and Uniformity
  • Wide Temperature Range
  • PC Interface
  • Simple to use and Cost effective
