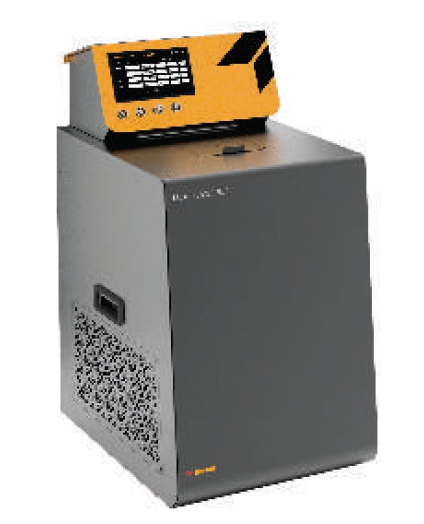

Liquid Bath Temperature calibrator

Liquid Bath Temperature calibrator

CALsys -35/200 / Autocal (-35 ~ 200°C)
  • Model : CALsys -35/200 / Autocal
  • CALsys -35/200 or CALsys -35/200 / Autocal 선택 가능
  • Temp range : -35 ~ 200°C
  • Stability: ±0.01°C at -35°C, ±0.03°C at 0°C, ±0.04°C at 200°C
  • Uniformity: ±0.03°C at -35°C, ±0.05°C at 0°C, ±0.07°C at 200°C
견적문의 Data sheet

제품 사양

Model CALsys -35/200 / Autocal
Temp range -35 ~ 200°C
Stability ±0.01°C at -35°C
±0.03°C at 0°C
±0.04°C at 200°C
Uniformity ±0.03°C at -35°C
±0.05°C at 0°C
±0.07°C at 200°C
Resolution 0.01°C
Cooling Time 60 min (room temperature to -35°C )
Volume 6 Ltr
Access Opening 105 (L) x 105 (W) mm
Immersion Depth 150 mm
Method of control Digital Self Tuned PID Controller
Computer Interface RS - 232
Power Requirement 230 VAC, 2 KW (50 Hz)
Dimensions 702(H) x 410(W) x 605(D)mm
Weight 65 Kg
Input (CaLsys -35/200 Autocal) Four Channels (One master and three test sensors),
high-quality LEMO connector suitable for both T/C and Rtd.
Software (CaLsys -35/200 Autocal) The calibrator will be provided with software for data recording (Manual Mode) and report generation in Auto Mode.
Data Logging (CaLsys -35/200 Autocal) Data Logging facility with logged data export to the computer through LAN port (Optional USB)


제품 상세 설명

  • High Accuracy
  • High Stability and Uniformity
  • Wide Temperature Range
  • PC Interfacing
  • Simple to Use and Cost Effective
