Liquid Bath Temperature calibrator

Liquid Bath Temperature calibrator

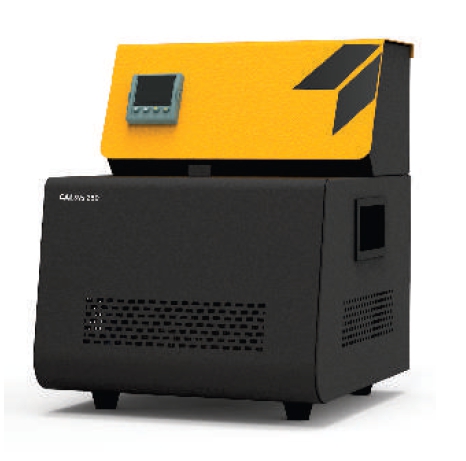

CALsys 250 (50 ~ 250°C)
  • Model : CALsys 250
  • Temp range : 50 ~ 250°C
  • Temperature Resolution: 0.1°C
  • Stability:±0.01°C at 50°C, ±0.02°C at 150°C, ±0.03°C at 250°C
  • Uniformity: ±0.02°C at 50°C, ±0.04°C at 150°C, ±0.06°C at 250°C
견적문의 Data sheet

제품 사양

Model CALsys 250
Temp range 50 ~ 250°C
Stability ±0.01°C at 50°C
±0.02°C at 150°C
±0.03°C at 250°C
Uniformity ±0.02°C at 50°C
±0.04°C at 150°C
±0.06°C at 250°C
Temperature Resolution 0.1°C
Controlling Sensor Precision PRT (PT-100)
Method of control Digital Self Tuned PID Controller
Time to Reach Min. Temp 2 Hrs
Medium of Heating Silicon Oil
Controlling Sensor PT-100
Time to Reach Max Temp 30 Mins
Computer Interface RS - 232
Power Requirement 230 VAC, 1.0 KW
Dimensions 330(H) x 250(W) x 350(D) mm
Access Opening 80x80 mm Dia
Depth 140 mm
Removable Insert Construction 6 holes of 15 mm Dia
Instrument Weight 12 Kg (without packing)
Volume 2 L
Wetted Parts Aluminum


제품 상세 설명

  • Large Immersion Depths
  • Wide Operating Range (50 to 250°C)
  • High Stability and Uniformity
  • PC interfacing
  • Simple to use and cost effective
  • Portability
