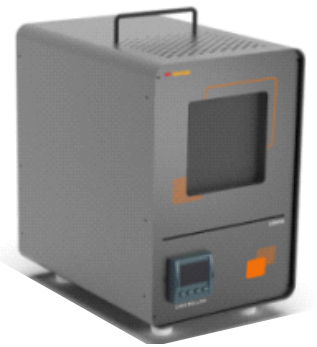

LBB11H, LBB22H, LBB33H (50 ~ 500°C)

Model	LBB11H, LBB22H, LBB33H
Temp range	50 ~ 500°C
Emissive area	LBB11H : 100x100 mm² LBB22H : 200x200 mm² LBB33H : 300x300 mm²
Emissive area uniformity (1)	LBB11H : ±2 at 400°C LBB22H : ±3 at 400°C LBB33H : ±4 at 400°C
Emissivity	0.98±0.02
Stability	±0.1°C
Method of control	Digital self tuned PID Controlle
Display resolution	0.1°C
Warm-up time from ambient to Tmax	LBB11H : 30 min LBB22H : 45 min LBB33H : 60 min
Head dimensions W x H x D (mm³)	LBB11H : 280 x 380 x 230 mm LBB22H : 480 x 500 x 300 mm LBB33H : 645 x 700 x 400 mm
Head weight	LBB11H : 15 kg LBB22H : 30 kg LBB33H : 45 kg
Remote control	Ethernet, RS-232
