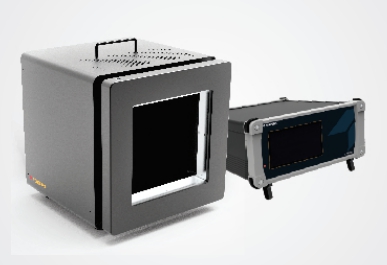

LBB11DCH (Absolute 0 ~ 115°C, Differential -25°C to 90°C)

Model	LBB11DCH LBB33DCH
Temp range	LBB11DCH : Absolute Temp Range : 0 ~ 115°C, Differential Temp Range : -25°C ~ 90°C LBB33DCH : Absolute Temp Range : 10 ~ 80°C, Differential Temp Range : -15°C ~ 55°C
Emissive area	LBB11DCH : 100 x 100 mm² LBB33DCH : 300 x 300 mm²
Emissive area uniformity (1 & 2)*	±0.20°C @50°C 1 at 80% of emissive area 2 Uniformity will decrease during nitrogen purging
Emissivity	0.98±0.02
Stability	±0.01°C
Display	5” LCD °C or °F user selectable
Controller Dimension	100(H) x 120(W) x 300(D) mm
Display resolution	0.01°C
Method of control	Digital self tuned PID Controller
Head dimensions W x H x D (mm³)	LBB11DCH : 300 X 320 X 190 mm LBB33DCH : 500 X 500 X 200 mm
Weight	LBB11DCH : 20 kg LBB33DCH : 50 kg
Remote control	Ethernet, RS-232
