고온용 BlackBody

고온용 BlackBody

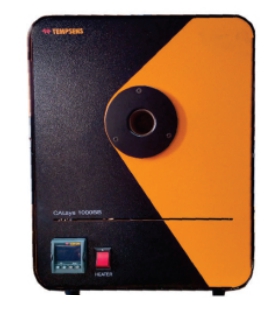

CALsys 1000BB (50°C ~ 1000°C)
  • 고온용 BlackBody
  • Temp range : 50°C ~ 1000°C
  • Stability: ±0.3°C at 50°C, ±0.4°C at 500°C, ±0.6°C at 1000°C
  • Temperature Resolution: 1.0°C
  • Emissivity:0.99 (±0.01)
견적문의 Data sheet

제품 사양

Model CALsys 1000BB
Temp range 50°C ~ 1000°C
Stability ±0.3°C at 50°C
±0.4°C at 500°C
±0.6°C at 1000°C
Temperature Resolution 1.0°C
Controlling Sensor Precision PT/RH-PT T/C
Method of Control Digital self tuned PID Controller
Time to Reach Max Temp 1.5Hr
External Aperture 25 mm dia.
Radiation Cavity Type Silicon Carbide
Dimensions 270(H) x 360(W) x 270(D) mm
Computer Interface RS-232


제품 상세 설명

  • Wide Operating Range (50 to 1000°C)
  • High Stability
  • PC interfacing
  • Simple to use and cost-effective
  • Sighting Tube
