고온용 BlackBody

고온용 BlackBody

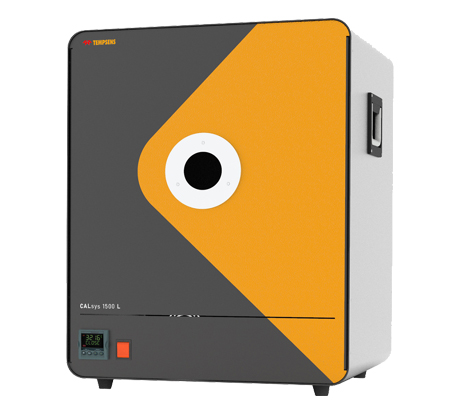

CALsys 1500BB (500°C ~ 1500°C)
  • 고온용 BlackBody
  • Temp range : 500°C ~ 1500°C
  • Stability: ±0.4°C at 500°C, ±0.7°C at 1000°C, ±1.0°C at 1500°C
  • Resolution: 1°C
견적문의 Data sheet

제품 사양

모델명 CALsys 1500BB
Temp range 500°C ~ 1500°C
Stability ±0.2°C at 500°C
±0.3°C at 1000°C
±0.5°C at 1500°C
External Aparture 40 mm dia
Cavity Diameter 46mm (85 mm depth)
Cavity type Silicon carbide
Method of Control Self tunned PID controller
Heating time 1.5 Hrs
Resolution 1 °C
Size (H x W x D) 590(H) x 450(W) x 530(D) mm
Weight 55Kg
Computer interface RS - 232


제품 상세 설명

  • Use of Silicon Carbide Spiral Rod Heaters
  • Wide Operating Range (500 to 1500°C)
  • High Stability
  • PC interfacing
  • Simple to use and cost effective
  • Sighting tube
