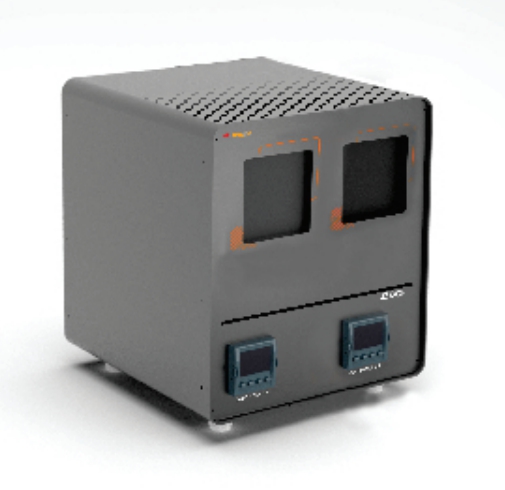

LBBCH DUAL (-20°C to 100°C, 50°C to 500°C)

Model	LBBCH DUAL
Temp range	Block - I : -20°C to 100°C Block - II : 50°C to 500°C
Emissive area	Block - I : 50 x 50 mm Block - II : 50 x 50 mm
Emissive area uniformity (1)	Block - I : ±0.20°C @ 50 °C Block - II : ±0.4°C @ 100°C 1 at 80% of emissive area tested at (23°C ±2°C)
Emissivity	Block - I : 0.99±0.01 Block - II : 0.99±0.01
Stability	Block - I : ±0.01°C Block - II : ±0.1°C
Heating Time	Block - I : 15 Min Block - II : 30 Min
Cooling Time	Block - I : 20 Min Block - II : 60 Min (Max to 150°C)
Display resolution	Block - I : 0.01°C Block - II : 0.1°C
Method of control	Digital self tuned PID Controller
Head dimensions W x H x D (mm³)	450(W) X 300(H) X 350(D) mm
Weight	15 kg
Max. power consumption	1.5 K W
Power supply	230 VAC, 1 ph. 50 Hz
