No. of Element | Simplex |
---|---|
Temperature Range | 0°C ~ 1200°C |
Sheath Material | Inconel 600 |
Sheath length | 400mm |
Extension Cable | 1.5 mtr. Long Teflon insulated cable with male/female miniature connector |
Sheath Diameter | 6mm |
Handle Dimension | 15 mm (OD) X 100 mm( L) |
Calibration | at 5 points at Tempsens NABL Accredited Lab |
Accuracy | Special Class (1.1°C or 0.4% of temperature whichever is greater) |
Standards | ANSI MC96.1 |

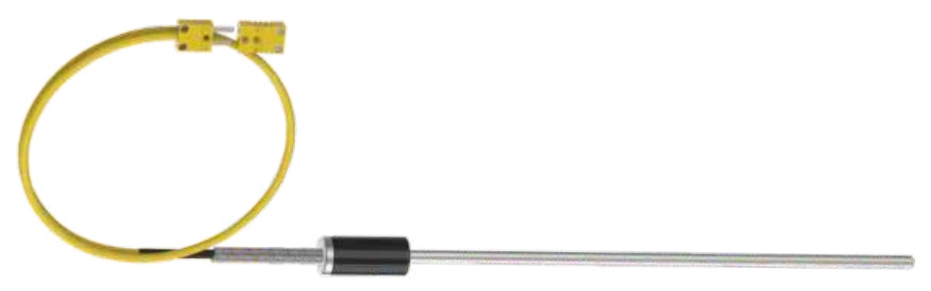

K 타입 보조 열전대는 건식 블록 온도 교정기를 사용한 온도 교정 비교 방법에서 마스터 열전대로 사용됩니다. 1.1°C 또는 온도의 0.4% 중 더 큰 값에 해당하는 특수 등급의 정확도를 제공합니다.
