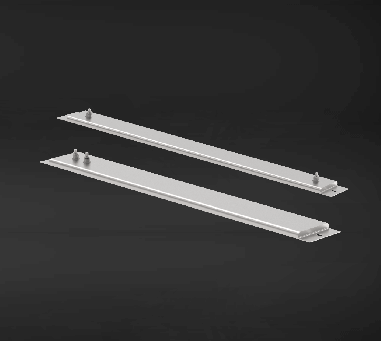

Strip Heaters are an outstanding industrial heating product and are extremely effective in surface heating applications. They are composed of resistance wire, uniformly coiled and stretched inside a ceramic insulator along the length and width of the heater to ensure uniform heating.

The assembly is embedded in a stainless steel sheath to have high mechanical strength and corrosion resistance and is filled with high purity magnesium oxide to remove air pockets and thus providing excellent thermal conductivity and dielectric strength.

For air heating applications, strip heaters are incorporated with fins to maximize surface area to increase heat transfer rates and thus provides faster and more efficient heating. Finned Strip Heaters are used for both forced and natural convection air heating. Continuous spiral fins are permanently furnace brazed to the sheath.

Features and Benefits

Applications

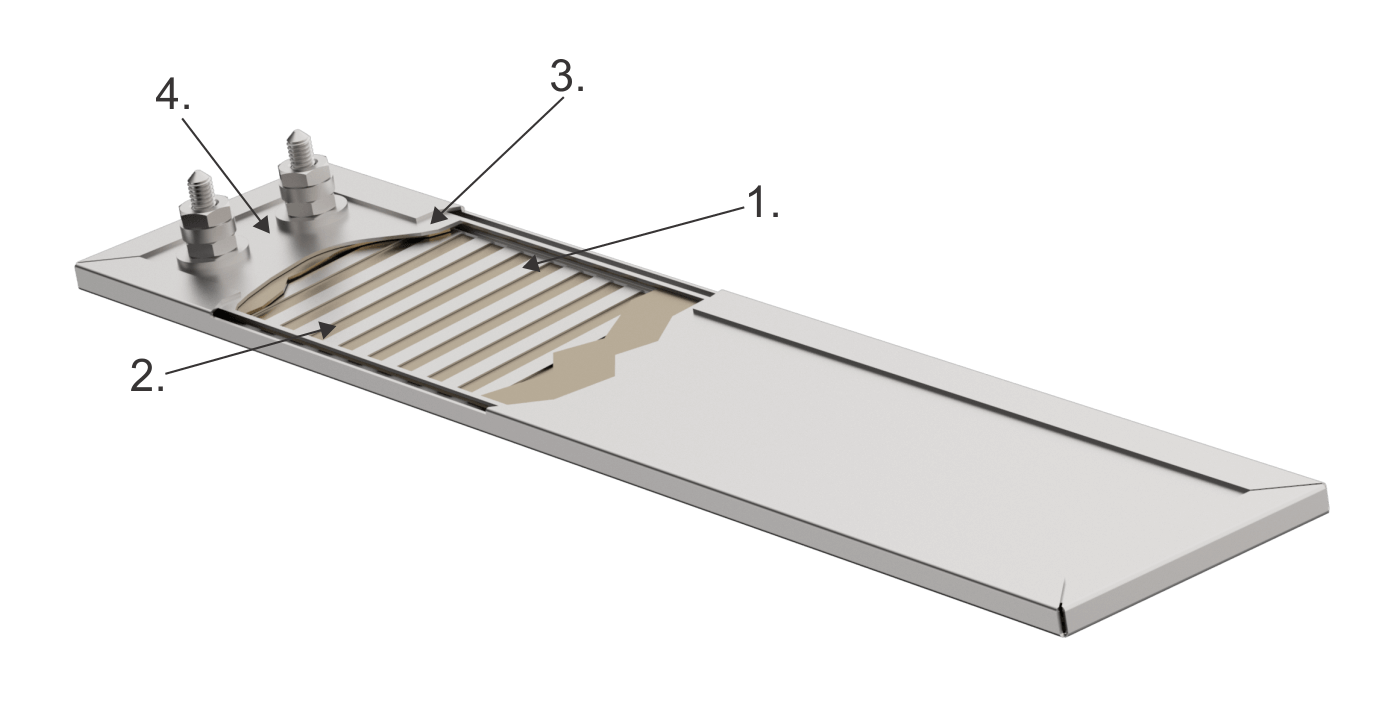

Construction

1. Nickel Chromium Resistance Ribbon uniformly wounded for even heat distribution.

2. Mica Strip specially selected mica strip for maximum heater life.

3.Mica Insulation high-grade mica used for insulation, for excellent thermal conductivity and dielectric strength.

4.Stainless steel sheath for oxidation and corrosion resistance in a wide variety of environment. Suitable for temperatures as high as 650°C.

Termination Options

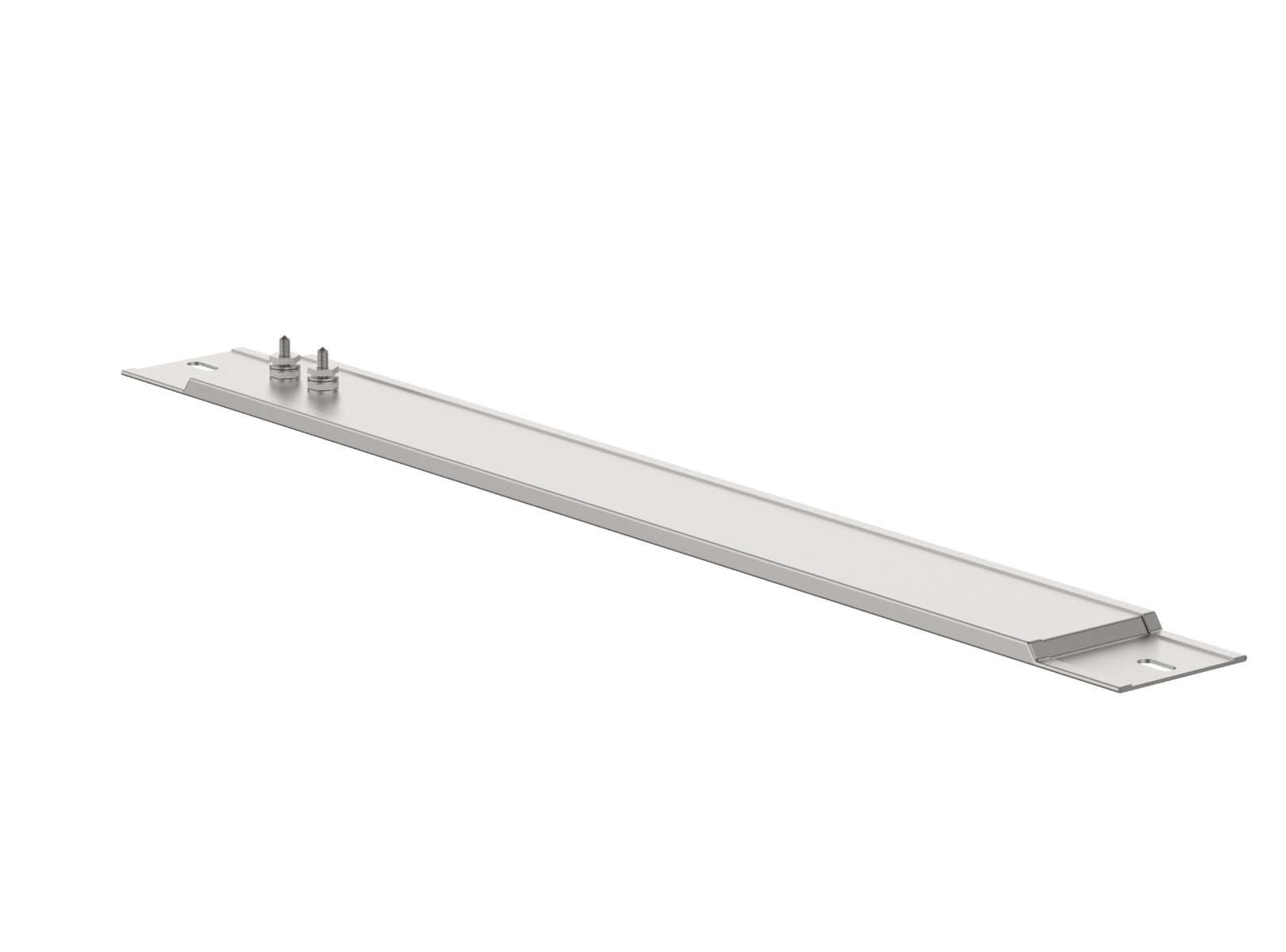

Strip Heater with Both End Mounting	Strip Heater with Offset Mounting
Strip Heater with Parallel Mounting	Strip Heater with Tandem Mounting

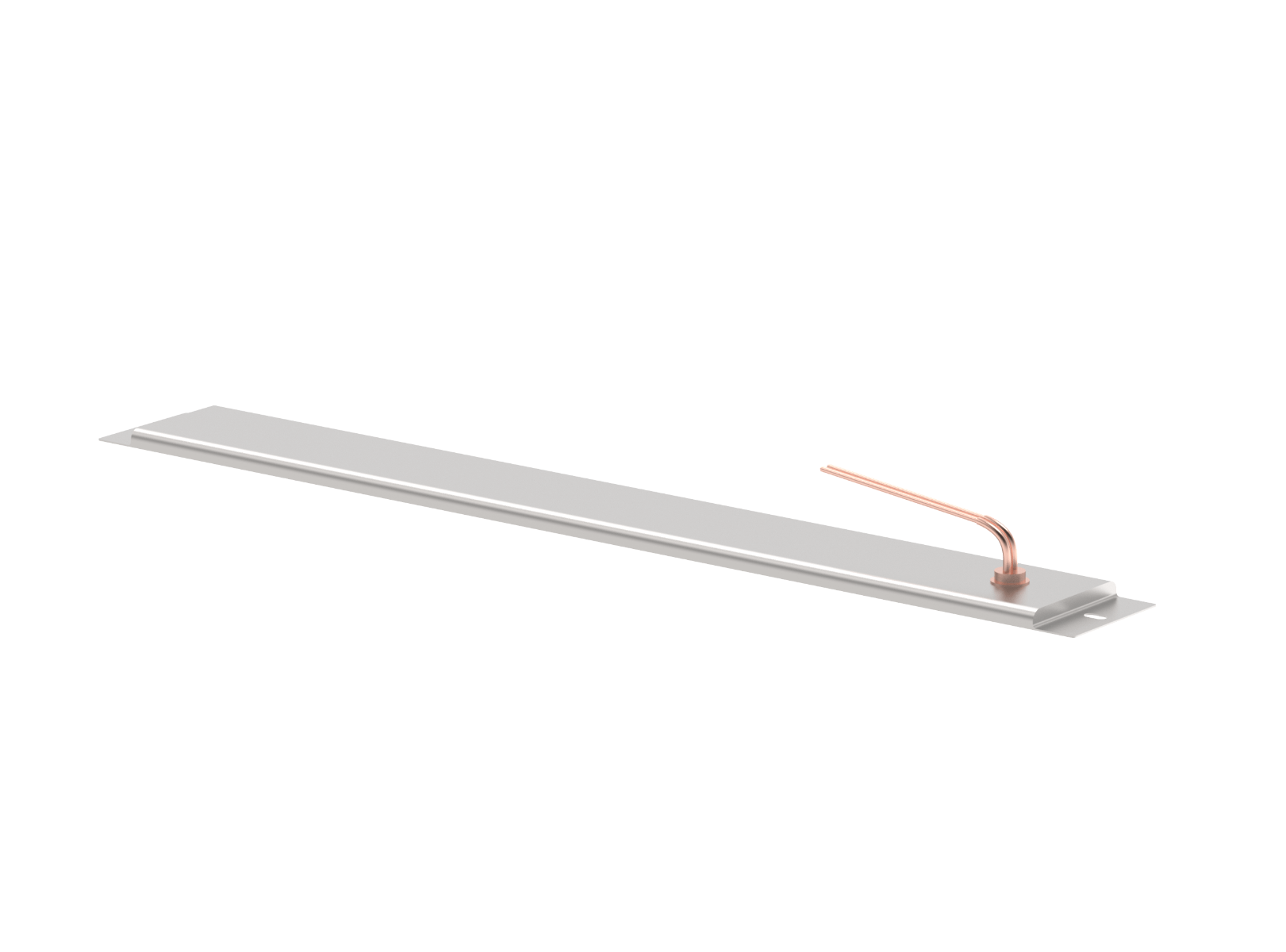

Strip Heater with Lead Wire on Side	Strip Heater with Lead Wire on Top
