340 FPS at 640×480

340 FPS at 640×480

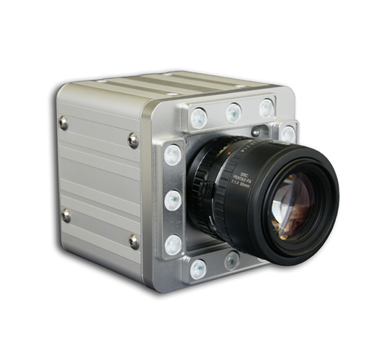

MS35K PRO V1
  • 장시간 DVR 녹화용 초고속카메라입니다.
  • 1920 x 1080 = 45 fps
  • 1280 x 1080 = 80 fps
  • 1280 x 720 = 95 fps
  • 768 x 600 = 200 fps
  • 640 x 480 = 340 fps
  • 320 x 240 = 1000 fps
견적문의 Data sheet

제품 사양

Sensor type Mega Speed B/W or Color CMOS Sensor
Maximum resolution 1920 x 1080
Pixel size 10um x 10um
Shutter speed Global Electronic Shutter 2us to 30 ms in 2 us steps
Spectral response 400nm to 1000nm
A-D converter 8 bits.
Trigger TTL 3 to 24 VDC via BNC connector centre pin positive active high
Trigger modes Start by TTL, stop by TTL
Sync out TTL 3 VDC via BNC connector centre pin positive active high
Camera size 4” x 4”x 3.4”
Camera weight 1000 grams
Camera cable 1 to 100 metres
PCI card PC must have a 5 Gbit Gige PCI card
Multiple cameras Several cameras can be networked with a Gbit Ethernet hub
Video output High Speed data to host PC
Ethernet Gigabit Ethernet connectivity
Camera speeds User defined in Software in one FPS increments
Optical interface Standard “C” Mount or “F” Mount adapters are available
Back focus Approximately 17.5mm from sensor surface to outer face of thread barrel
Power requirements 12 V DC Centre pin positive. 25 W. 120 / 240 VAC Wall adapter is included
Gain adjustments User selectable from software
Image sizes User selectable from factory defaults or by software selection
Capture modes Automatic or manual modes. Start/stop by trigger or hot keys
File saving User can save in AVI format, JPEG or BMP format to PC RAM or hard drive
Image enhancement Bitmaps can be sharpened to bring out better details in captured files
Data Transfer Continuous real time data transfer to your PC
Data back up PC hard drive only. Camera contains no internal memory
Playback Rate User selectable from 1 to 300 fps for fast video review

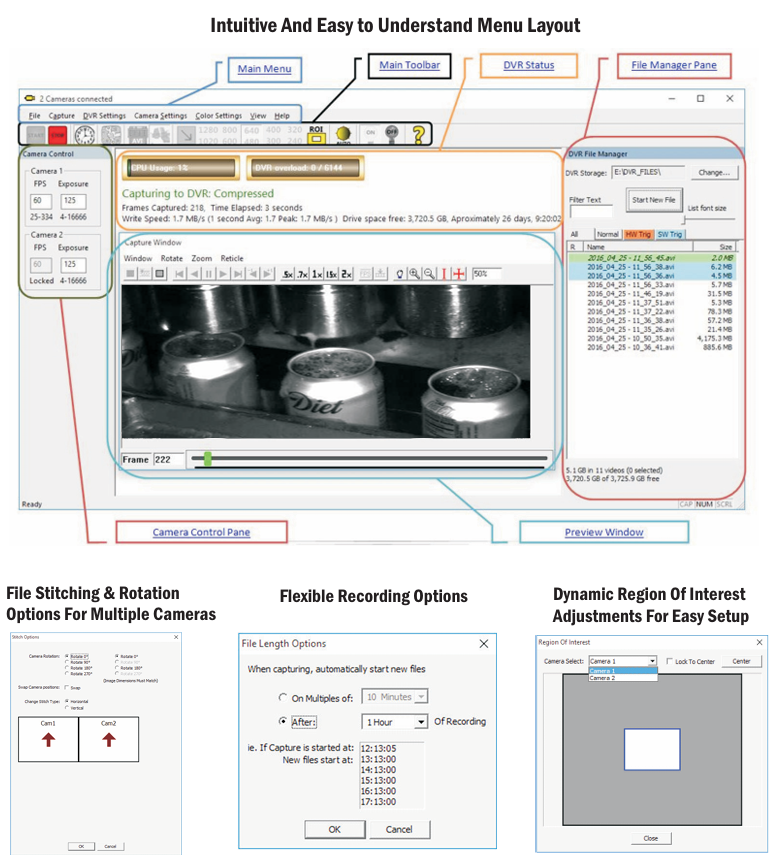

Software Full Camera Control software and AVI editing functions
Operating Temperature -45° to +45°C
Shock rating 100G


제품 상세 설명

DATA SHEET를 참고하시기 바랍니다
