1000 FPS at 1000×1000

1000 FPS at 1000×1000

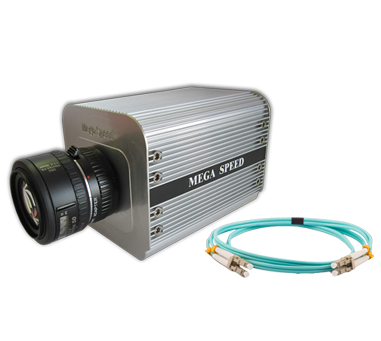

MS35K PRO Fiber
  • 장시간 DVR 녹화용 초고속카메라입니다.
  • 1000 x 1000 = 1000 fps
  • 1920 x 1080 = 500 fps
견적문의 Data sheet

제품 사양

Sensor type Color or monochrome CMOS sensor. Determined at time of order
Image sizes User defined from software pre-sets or custom selections
Maximum resolution 1920 x 1080
Minimum resolution 64 x 64
Maximum speed 1000 fps at 1000 x 1000 or 500 fps at 1920 x 1080 image sizes
Pixel size 10 micron x 10 micron square pixel
Shutter speed Global shutter 2 us to 30 ms in 1 us steps with exposure time tags
Spectral response 400nm to 1000nm
ISO 12,500 monochrome, 4000 color
A-D converter 10 bit
Trigger in requirement 3 to 24 VDC, active high through cameras rear BNC jack. Center pin positive
Strobe out TTL 3.3 VDC via cameras rear BNC jack. Center pin positive active high on exposure
Trigger modes Continuos capture mode. External hardware trigger source required for trigger modes
Editing software Image analysis, data acquisition, object tracking, AVI editing & MP4 image compression
File saving User can save in RAW, AVI, JPEG, BMP, TIF, PNG or MP4 format to the DVR’s hard drive
Control software Mega Speed DVR Control software
Video live-view Live 30 fps preview to DVR monitor during recording
Video recording Camera streams real time video back to the DVR
Event tagging Captured video files can be sorted & marked manually or with an external hardware trigger
Video Review Video review, editing and playback can be done at anytime when the DVR is recording real time video
Networking Gigabit Ethernet cables, switches and connections can be used connecting the camera to the DVR
Camera cable Short haul copper or long haul LC fiber cable
Lens mount Standard “C” mount. “F” mount, “G” mount and electronic lens are all available as an option
Camera size 4.2” wide x 4.2” high x 6” long. ¼ x 20 tpi threaded camera mount hole
Camera weight 900grams
Camera body Machined anodized aluminum
Power requirements 3 amps @ 12 V DC. ( 36 watts )
Shock Rating 50g for 15 milli-seconds 10 times all axis. Operational vibration meets 0.25g, from 5-500Hz


제품 상세 설명

DATA SHEET를 참고하시기 바랍니다
